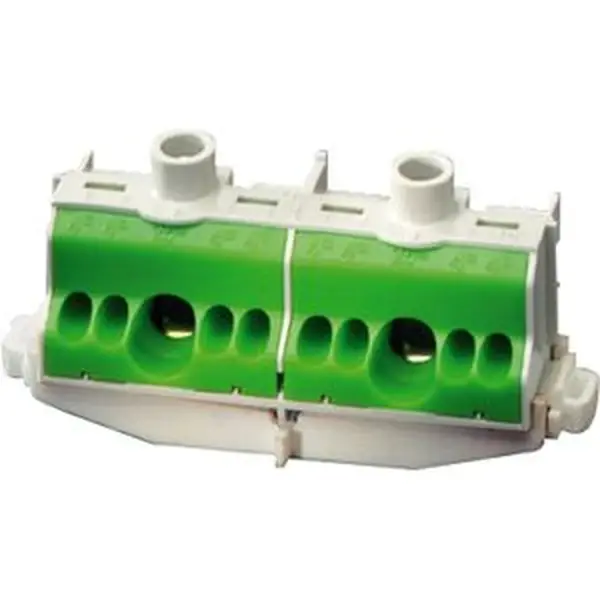

Hensel - FIXCONNECT PE terminal 2 x 25 mm², 8 x 4 mm², Cu for assembly on DIN rail.

Closing plate required

-

Colour

Green-yellow

Connectable conductor cross section fine-strand with cable end sleeve

6 .. 25 mm²

Connectable conductor cross section fine-strand without cable end sleeve

1.5 .. 25 mm²

Connectable conductor cross section multi-wired

1.5 .. 25 mm²

Connectable conductor cross section solid-core

1.5 .. 25 mm²

Connection position

Sideways

Explosion-tested version 'Ex e'

-

Inflammability class of insulation material acc. with UL94

Other

Material insulation body

Thermoplastic

Mounting method

DIN rail (top hat rail) 35 mm

Number of clamp positions per pole

10

Number of poles

1

Operation temperature

40 .. 40 °C

Rated current In

101 A

Rated voltage

690 V

Transparent

-

Type of electrical connection 1

Screw connection

Type of electrical connection 2

Plug-in connection
