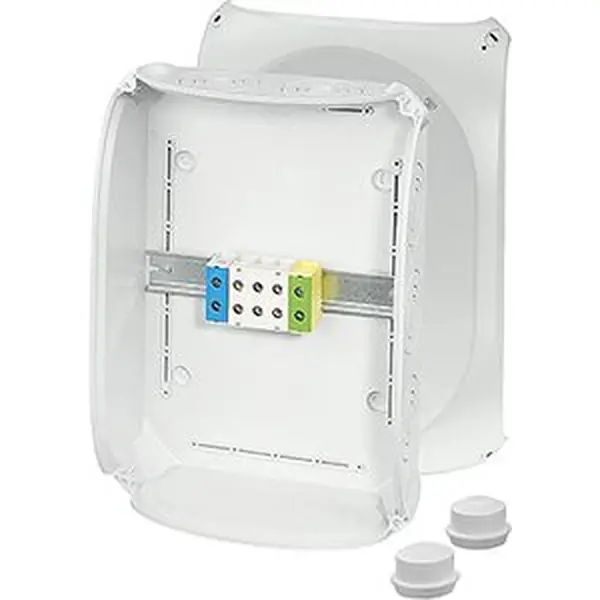

Hensel - Cable junction box 1.5-50 mm² 3-phase, 5-pole terminal

Castable

-

Casting compound included

-

Circuit integrity

None

Colour

Grey

Cover

Not transparent

Cover attachment

Screwed

Cover model

Other

Degree of protection (IP)

IP66/IP67/IP69

Depth

122 mm

Equipped with

Clamp

Explosion-tested version

-

For Ex-Zone dust

None

For Ex-zone gas

None

For tube diameter

Other

Halogen free

+

Inlet from the rear

+

Length

255 mm

Material

Plastic

Max. conductor cross section

50 mm²

Mounting method

Wall-/ceiling mounting

Number of inlets

10

Rated insulation voltage Ui

690 V

Sealable

+

Shape

Rectangular

Surface protection

Untreated

Tackable

-

Type of housing feed-through

Preembossing

Weatherproof

+

Width

355 mm

With screening

-

Working temperature

-25 .. 70 °C
