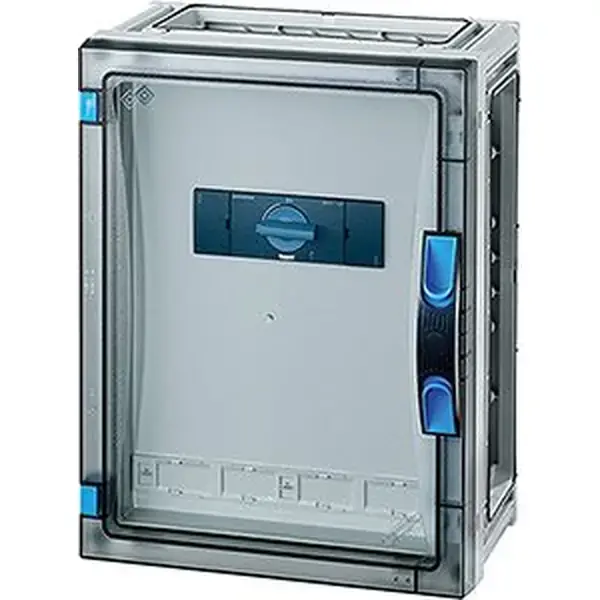

Hensel - ENYSTAR Isolator box 125 A, 4 pole + PE

Colour control element

Other

Degree of protection (IP), front side

IP66

Device construction

Complete device in housing

Interlockable

-

Max. rated operation voltage Ue AC

690 V

Motor drive integrated

-

Motor drive optional

-

Number of auxiliary contacts as change-over contact

0

Number of auxiliary contacts as normally closed contact

0

Number of auxiliary contacts as normally open contact

0

Number of poles

4

Rated operating voltage

690 .. 690 V

Rated operation power at AC-3, 400 V

55 kW

Rated operation power at AC-23, 400 V

55 kW

Rated permanent current Iu

125 A

Rated permanent current at AC-21, 400 V

125 A

Rated short-time withstand current lcw

2.75 kA

Suitable for distribution board installation

-

Suitable for front mounting 4-hole

-

Suitable for front mounting centre

-

Suitable for ground mounting

-

Suitable for intermediate mounting

-

Switching power at 400 V

55 kW

Type of control element

Toggle

Type of electrical connection of main circuit

Frame clamp

Version as emergency stop installation

-

Version as main switch

+

Version as maintenance-/service switch

-

Version as reversing switch

-

Version as safety switch

-

Voltage release optional

-
