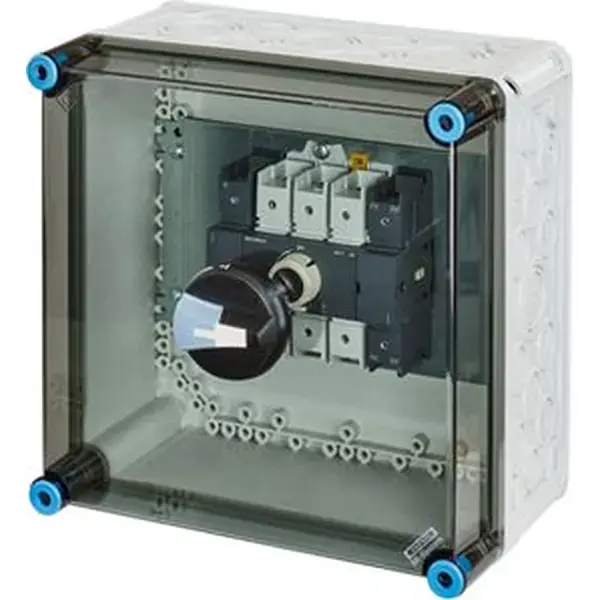

Mi Isolator Box 100a, 4-pole + Pe

Colour Control Element

Black

Degree Of Protection (ip), Front Side

Ip65

Device Construction

Complete Device In Housing

Interlockable

+

Max. Rated Operation Voltage Ue Ac

690 V

Motor Drive Integrated

-

Motor Drive Optional

-

Number Of Auxiliary Contacts As Change-over Contact

0

Number Of Auxiliary Contacts As Normally Closed Contact

0

Number Of Auxiliary Contacts As Normally Open Contact

0

Number Of Poles

4

Rated Operating Voltage

690 .. 690 V

Rated Operation Power At Ac-3, 400 V

45 Kw

Rated Operation Power At Ac-23, 400 V

45 Kw

Rated Permanent Current Iu

100 A

Rated Permanent Current At Ac-21, 400 V

100 A

Rated Short-time Withstand Current Lcw

2.75 Ka

Suitable For Distribution Board Installation

-

Suitable For Front Mounting 4-hole

-

Suitable For Front Mounting Centre

-

Suitable For Ground Mounting

-

Suitable For Intermediate Mounting

-

Switching Power At 400 V

45 Kw

Type Of Control Element

Short Thumb-grip

Type Of Electrical Connection Of Main Circuit

Frame Clamp

Version As Emergency Stop Installation

-

Version As Main Switch

+

Version As Maintenance-/service Switch

-

Version As Reversing Switch

-

Version As Safety Switch

-

Voltage Release Optional

-
