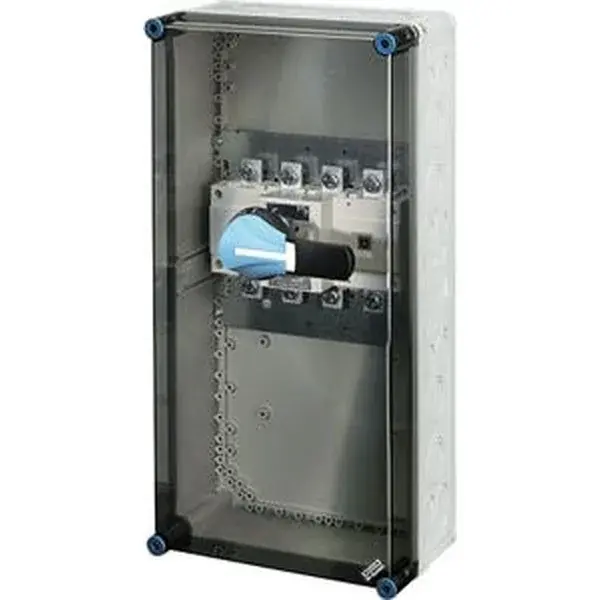

Hensel - Mi isolator box 250A, 4-pole + PE

Colour control element

Black

Degree of protection (IP), front side

IP65

Device construction

Complete device in housing

Interlockable

+

Max. rated operation voltage Ue AC

500 V

Motor drive integrated

-

Motor drive optional

-

Number of auxiliary contacts as change-over contact

0

Number of auxiliary contacts as normally closed contact

0

Number of auxiliary contacts as normally open contact

0

Number of poles

4

Rated operating voltage

500 .. 500 V

Rated operation power at AC-3, 400 V

132 kW

Rated operation power at AC-23, 400 V

132 kW

Rated permanent current Iu

250 A

Rated permanent current at AC-21, 400 V

250 A

Rated short-time withstand current lcw

9 kA

Suitable for distribution board installation

-

Suitable for front mounting 4-hole

-

Suitable for front mounting centre

-

Suitable for ground mounting

-

Suitable for intermediate mounting

-

Switching power at 400 V

132 kW

Type of control element

Long turning handle

Type of electrical connection of main circuit

Bolt connection

Version as emergency stop installation

-

Version as main switch

+

Version as maintenance-/service switch

-

Version as reversing switch

-

Version as safety switch

-

Voltage release optional

-
