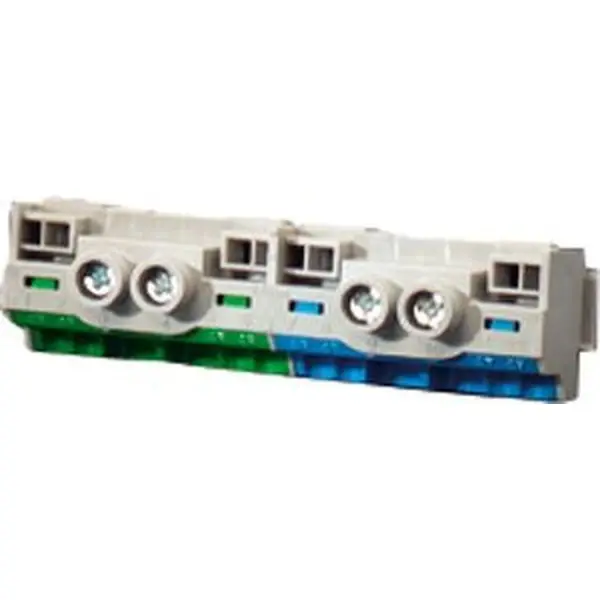

Hensel - KV-PE and N terminals for small-type distribution boards with 4.5 modules. FIXCONNECT plug-in terminal technology.

Closing plate required

-

Colour

Multi-coloured

Connectable conductor cross section fine-strand with cable end sleeve

1.5 .. 25 mm²

Connectable conductor cross section fine-strand without cable end sleeve

1.5 .. 25 mm²

Connectable conductor cross section multi-wired

1.5 .. 25 mm²

Connectable conductor cross section solid-core

1.5 .. 25 mm²

Connection position

Sideways

Explosion-tested version 'Ex e'

-

Inflammability class of insulation material acc. with UL94

Other

Material insulation body

Thermoplastic

Mounting method

Direct mounting

Number of clamp positions per pole

6

Number of poles

2

Operation temperature

40 .. 40 °C

Rated current In

101 A

Rated voltage

690 V

Transparent

-

Type of electrical connection 1

Screw connection

Type of electrical connection 2

Plug-in connection
