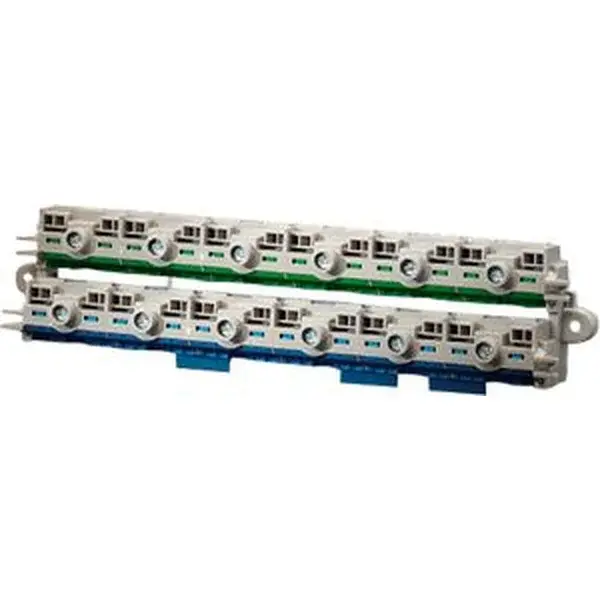

Kv Pe And N Terminals For Small-type Distribution Board With 12 Modules Per Row And Kv Empty Closure. Fixconnect Plug-in Terminal Technology. N Separable, Up To 4 Different Potentials.

Closing Plate Required

-

Colour

Multi-coloured

Connectable Conductor Cross Section Fine-strand With Cable End Sleeve

1.5 .. 25 Mm²

Connectable Conductor Cross Section Fine-strand Without Cable End Sleeve

1.5 .. 25 Mm²

Connectable Conductor Cross Section Multi-wired

1.5 .. 25 Mm²

Connectable Conductor Cross Section Solid-core

1.5 .. 25 Mm²

Connection Position

Sideways

Explosion-tested Version 'ex E'

-

Inflammability Class Of Insulation Material Acc. With Ul94

Other

Material Insulation Body

Thermoplastic

Mounting Method

Direct Mounting

Number Of Clamp Positions Per Pole

30

Number Of Poles

2

Operation Temperature

40 .. 40 °c

Rated Current In

75 A

Rated Voltage

690 V

Transparent

-

Type Of Electrical Connection 1

Screw Connection

Type Of Electrical Connection 2

Plug-in Connection
