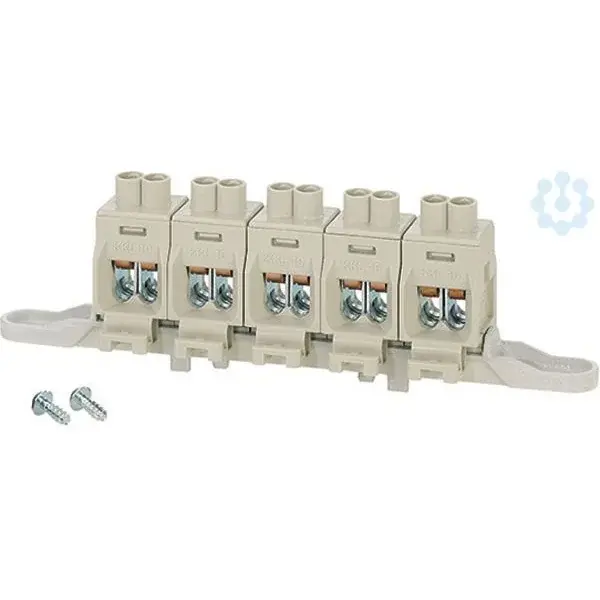

Hensel - Terminals DK KS 10 for junction boxes DK 10.., KF 10.. and EB 10.., 5-pole, 2.5-16 mm2, Cu, for assembly with bracket

Clamping channel opening branch conductor

Both sides open

Clamping channel opening main conductor

Both sides open

Material branch conductor

Copper

Material main conductor

Copper

Nominal cross section branch conductor, SE/RE

2.5 .. 10 mm²

Nominal cross section branch conductor, SM/RM

2.5 .. 10 mm²

Nominal cross section main conductor, SE

2.5 .. 16 mm²

Nominal cross section main conductor, SM

2.5 .. 16 mm²

Surface protection

Bare

Terminal insulated

+

Type of connection

Screwed connection
