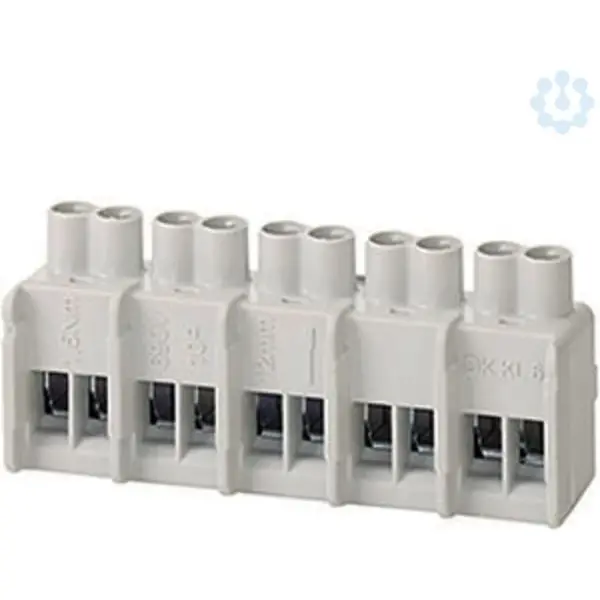

Hensel - Terminals for junction boxes DK KL 06, 5-pole, 1,5-10 mm2, Cu, for assembly with bracket

Clamping channel opening branch conductor

One side open

Clamping channel opening main conductor

One side open

Material branch conductor

Copper

Material main conductor

Copper

Nominal cross section branch conductor, SE/RE

1.5 .. 6 mm²

Nominal cross section branch conductor, SM/RM

1.5 .. 6 mm²

Nominal cross section main conductor, SE

1.5 .. 10 mm²

Nominal cross section main conductor, SM

1.5 .. 10 mm²

Surface protection

Bare

Terminal insulated

+

Type of connection

Screwed connection
