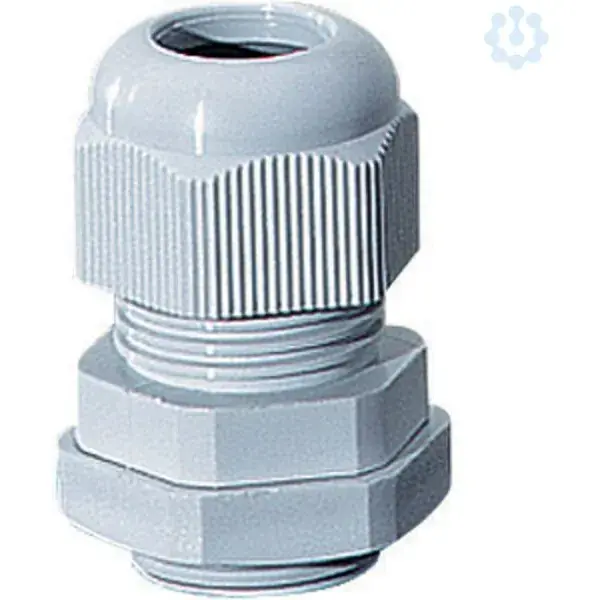

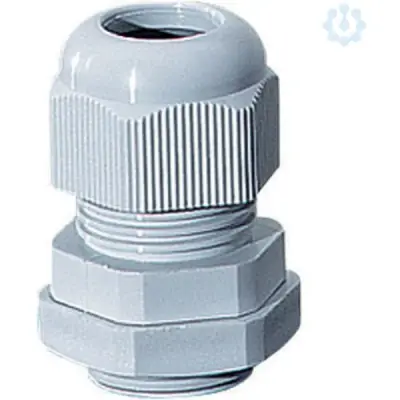

Cable Gland Akm 16 5-10mm Grey Ip66/67

Bend Radius Protection/trumpet Flare

-

Colour

Grey

Degree Of Protection (ip)

Ip67

Explosion-tested Version

-

Flat Cable Coupling

-

For Ex-zone Dust

None

For Ex-zone Gas

None

Glass-fibre Reinforced

-

Halogen Free

+

Hexagon Angular Dimension

22 Mm

Material

Plastic

Material Quality

Polyamide (pa)

Model

Straight

Multi Seal Area

-

Nominal Thread Size Metric/pg

16

Pitch Thread

1.5 Mm

Ral-number

7035

Separable Screw Gland

-

Shock Resistant

+

Suitable For Cable Diameter

5 .. 10 Mm

Surface Protection

Untreated

Thread Length

8 Mm

Thread Type

Metric

Type Of Sealing

Sealing Ring

With Locknut

+

With Strain Relief

+

Working Temperature

-25 .. 70 °c

Wrench Width

20 Mm
