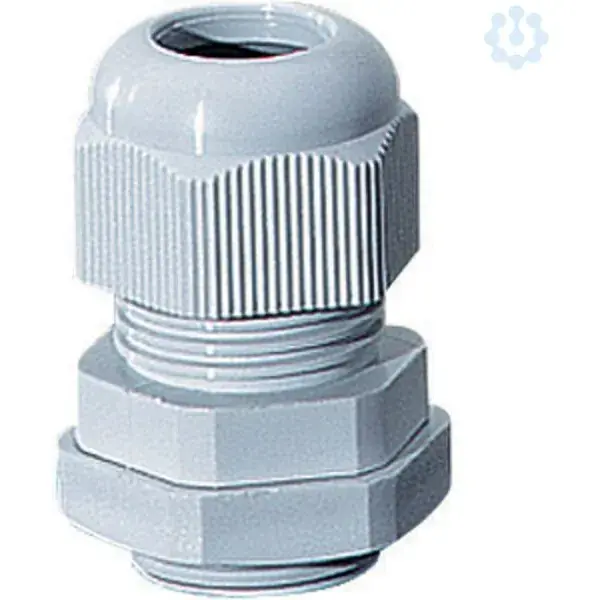

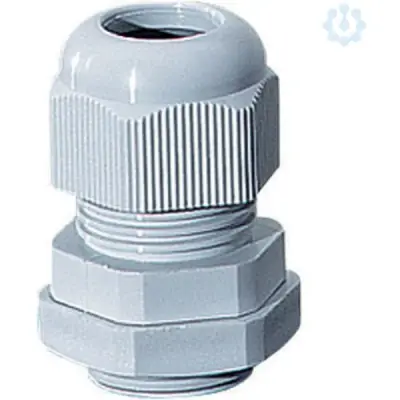

Hensel - Cable gland AKM 25 11-17mm grey IP66/67

Bend radius protection/trumpet flare

-

Colour

Grey

Degree of protection (IP)

IP67

Explosion-tested version

-

Flat cable coupling

-

For Ex-Zone dust

None

For Ex-zone gas

None

Glass-fibre reinforced

-

Halogen free

+

Hexagon angular dimension

32 mm

Material

Plastic

Material quality

Polyamide (PA)

Model

Straight

Multi seal area

-

Nominal thread size metric/PG

25

Pitch thread

1.5 mm

RAL-number

7035

Separable screw gland

-

Shock resistant

+

Suitable for cable diameter

11 .. 17 mm

Surface protection

Untreated

Thread length

8 mm

Thread type

Metric

Type of sealing

Sealing ring

With locknut

+

With strain relief

+

Working temperature

-25 .. 70 °C

Wrench width

29 mm
