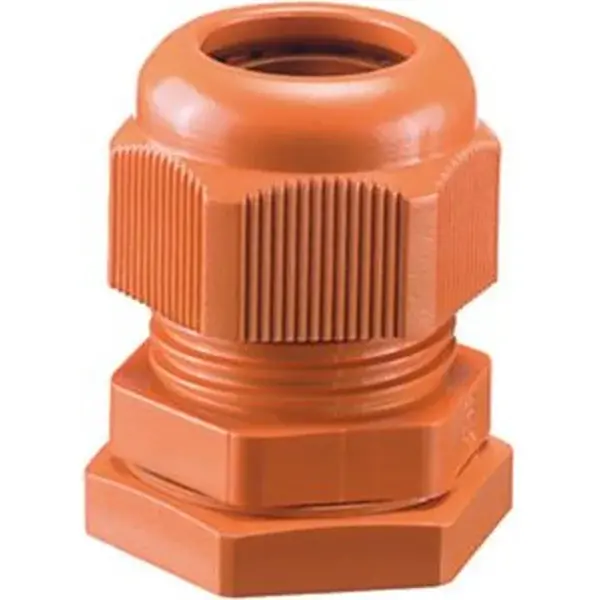

Hensel - Cable glands, orange, RAL 2003 for knockouts M 32. Sealing range Ø 15-21 mm.

Bend radius protection/trumpet flare

-

Colour

Other

Degree of protection (IP)

IP66

Explosion-tested version

-

Flat cable coupling

-

For Ex-Zone dust

None

For Ex-zone gas

None

Glass-fibre reinforced

-

Halogen free

+

Hexagon angular dimension

39.7 mm

Material

Plastic

Material quality

Polyamide (PA)

Model

Straight

Multi seal area

-

Nominal thread size metric/PG

32

Pitch thread

1.5 mm

RAL-number

2003

Separable screw gland

-

Shock resistant

+

Suitable for cable diameter

15 .. 21 mm

Surface protection

Untreated

Thread length

10 mm

Thread type

Metric

Type of sealing

Sealing ring

With locknut

+

With strain relief

+

Working temperature

-25 .. 70 °C

Wrench width

36 mm
