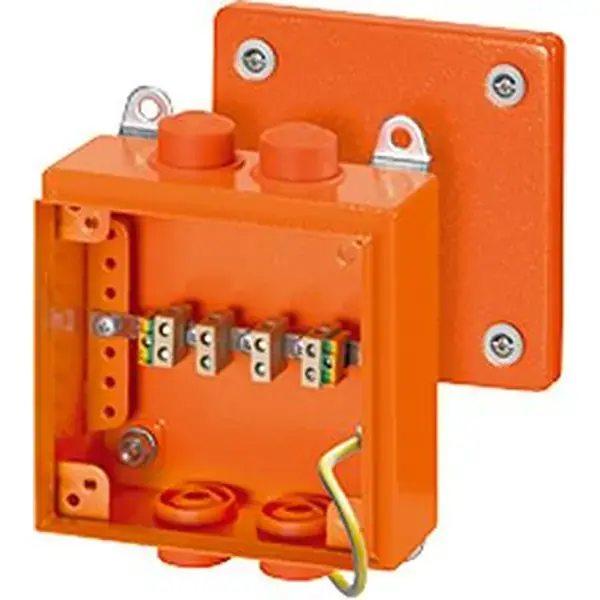

Junction Box Tested For Intrinsic Fire Resistance, Diameter 0.8 (0.5 Sqmm)-4 Sqmm, 5p. Steel Sheet

Castable

-

Casting Compound Included

-

Circuit Integrity

E90

Colour

Orange

Cover

Not Transparent

Cover Attachment

Screwed

Cover Model

Other

Degree Of Protection (ip)

Ip66

Depth

80 Mm

Equipped With

Clamp

Explosion-tested Version

-

For Ex-zone Dust

None

For Ex-zone Gas

None

For Tube Diameter

Other

Halogen Free

+

Inlet From The Rear

-

Length

150 Mm

Material

Steel

Max. Conductor Cross Section

4 Mm²

Mounting Method

Wall-/ceiling Mounting

Number Of Inlets

4

Rated Insulation Voltage Ui

400 V

Sealable

-

Shape

Square

Surface Protection

Other

Tackable

-

Type Of Housing Feed-through

Other

Weatherproof

-

Width

150 Mm

With Screening

-

Working Temperature

-25 .. 40 °c
