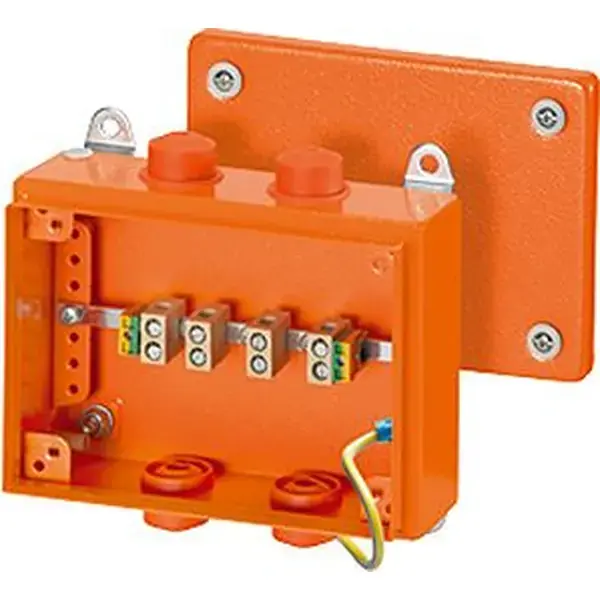

Hensel - junction box tested for intrinsic fire resistance, 1.5-10 sqmm, 5-pole

Castable

-

Casting compound included

-

Circuit integrity

E90

Colour

Orange

Cover

Not transparent

Cover attachment

Screwed

Cover model

Other

Degree of protection (IP)

IP66

Depth

80 mm

Equipped with

Clamp

Explosion-tested version

-

For Ex-Zone dust

None

For Ex-zone gas

None

For tube diameter

Other

Halogen free

+

Inlet from the rear

-

Length

200 mm

Material

Steel

Max. conductor cross section

10 mm²

Mounting method

Wall-/ceiling mounting

Number of inlets

4

Rated insulation voltage Ui

400 V

Sealable

-

Shape

Rectangular

Surface protection

Other

Tackable

-

Type of housing feed-through

Other

Weatherproof

-

Width

150 mm

With screening

-

Working temperature

-25 .. 40 °C
