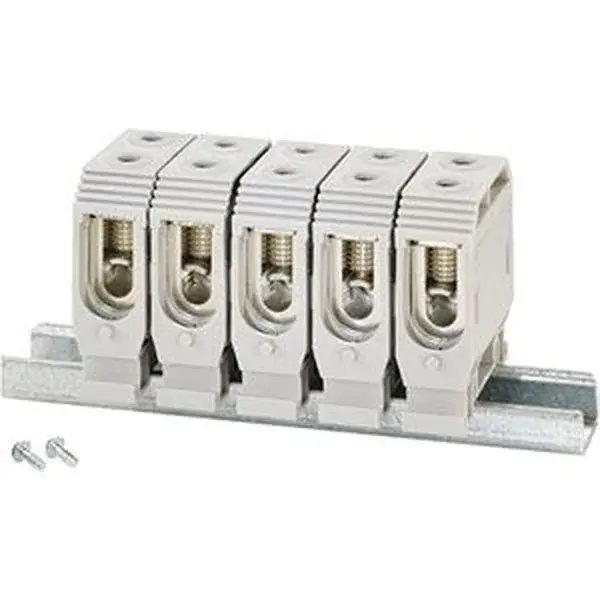

Hensel - Terminal with 2 clamping units per pole up to 35 mm². For installation in cable junction boxes types DK 35... and KF 35.... - 1

Hensel - Terminal with 2 clamping units per pole up to 35 mm². For installation in cable junction boxes types DK 35... and KF 35.... - 1

Hensel - Terminal with 2 clamping units per pole up to 35 mm². For installation in cable junction boxes types DK 35... and KF 35....

Barcode : 4012591122524

Product Code : 62000120

126.16 BGN + VAT

Add to List Recommend It

Product parameters

Net Weight

1.216 kg

Additional parameters

-

Clamping channel opening branch conductor

Both sides open
Clamping channel opening main conductor

Both sides open
Material branch conductor

Copper
Material main conductor

Copper
Nominal cross section branch conductor, SE/RE

16 .. 35 mm²
Nominal cross section branch conductor, SM/RM

16 .. 35 mm²

Nominal cross section main conductor, SE

16 .. 50 mm²
Nominal cross section main conductor, SM

16 .. 50 mm²
Surface protection

Bare
Terminal insulated

+
Type of connection

Screwed connection
