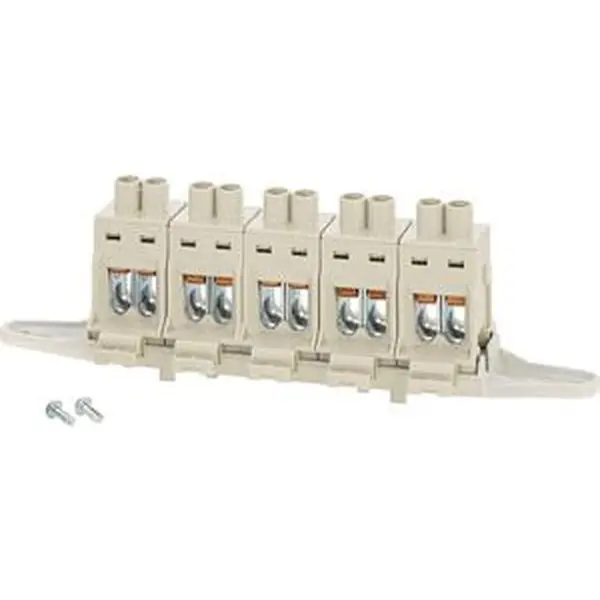

Terminal With 2 Clamping Units Per Pole Up To 25 Mm². For Installation In Cable Junction Boxes Types Dk 25..x, Dk 25..xx And Kf 25..x.

Clamping Channel Opening Branch Conductor

Both Sides Open

Clamping Channel Opening Main Conductor

Both Sides Open

Material Branch Conductor

Copper

Material Main Conductor

Copper

Nominal Cross Section Branch Conductor, Se/re

6 .. 25 Mm²

Nominal Cross Section Branch Conductor, Sm/rm

6 .. 25 Mm²

Nominal Cross Section Main Conductor, Se

6 .. 35 Mm²

Nominal Cross Section Main Conductor, Sm

6 .. 35 Mm²

Surface Protection

Bare

Terminal Insulated

+

Type Of Connection

Screwed Connection
