DAS Company is an authorized CHINT distribution partner, stocking and supplying the complete CHINT low-voltage portfolio — NXB miniature circuit breakers, NM8 moulded-case circuit breakers (up to 1600A), NXC AC contactors, NXBLE and NS2 residual current devices, thermal overload relays and CHINT smart energy meters — to electrical contractors, panel builders and industrial buyers across Europe from our Bulgaria distribution base, offering IEC-certified quality at competitive B2B pricing.
The CHINT NXB-63 miniature circuit breaker range covers 1A–63A in 1P, 1P+N, 2P, 3P, 3P+N and 4P configurations with B, C and D electromagnetic release curves — compliant with IEC 60898-1 for final circuit protection in residential, commercial and light industrial distribution boards. The standard NXB-63 provides 6 kA rated breaking capacity (Icu); the NXB-63H high breaking capacity variant delivers 10 kA for use in installations close to the supply transformer or with high prospective fault current. Mechanical life of 20,000 cycles and electrical life of 10,000 cycles exceed IEC 60898-1 minimum requirements. The NXB range is complemented by a full accessories family — auxiliary contacts (AX-X1), alarm contacts (AL-X1) and undervoltage releases (UVR) compatible across all pole configurations. All CHINT NXB MCBs carry KEMA, CE and RoHS certification for sale and installation in European IEC 60364 electrical installations.

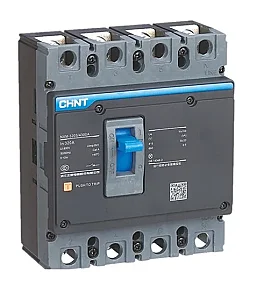

The CHINT NM8 MCCB range provides thermal-magnetic and electronic trip unit moulded case circuit breakers from 16A to 1600A for industrial main and sub-distribution panel protection. The NM8-125S (16–125A, 50 kA Icu), NM8-250S (16–250A, 50 kA), NM8-400S (315–400A, 70 kA) and NM8-630S (380–630A, 70 kA) cover the complete industrial distribution range in 3-pole and 4-pole configurations, compliant with IEC/EN 60947-2. Electronic trip unit variants (NM8S) add adjustable overload, short-circuit delay and earth fault protection settings for main switchboard and busbar protection applications. The NXM MCCB range (125A–1600A, 50–70 kA Icu) provides an alternative fixed-type MCCB for projects requiring high breaking capacity at reduced cost. KEMA, UKrSEPRO and GOST certifications support installation in both EU and Eastern European energy projects. Vertical and horizontal mounting modes are supported across the NM8 range for flexible panel orientation.
The CHINT NXC AC contactor range covers 9A to 650A in AC-3 rating for direct-on-line, reversing and star-delta motor starting applications. The NXC-09 to NXC-32 cover the most common industrial motor starting frame sizes (4 kW–15 kW at 400V AC-3) in a compact 45 mm wide DIN-rail mounting body with 24V, 110V and 230V AC coil options. The NXC-40 to NXC-95 cover medium motor frame sizes; the NXC-115 to NXC-400 cover heavy-duty industrial applications including compressor, pump and conveyor motor starting in process plant panels. Auxiliary contact blocks (1NO+1NC standard, additional 2NO+2NC blocks available) and surge suppression modules mount directly on the contactor body without additional bracket accessories. All NXC contactors comply with IEC 60947-4-1 for direct motor switching and carry CE marking for European industrial machinery directive compliance.
The CHINT NXBLE-63 RCBO combines overload, short-circuit and residual current protection in a single DIN-rail module — replacing separate MCB and RCCB combinations with a space-saving integrated device. Available in 1P+N, 2P, 3P, 3P+N and 4P configurations from 6A to 63A with 30 mA, 100 mA and 300 mA residual current sensitivity settings, Type AC detection. The NXBLE-125G extends the RCBO range to 125A in 4P (63–125A) for higher-current final circuits in commercial buildings, EV charging points and industrial office power distribution — providing 10 kA breaking capacity with IEC 61009-1 compliance and 20,000 mechanical operating cycles. The NS2 RCCB (2P and 4P, 25–125A, 30/100/300 mA) provides earth leakage protection without overcurrent trip for use downstream of an existing MCB in applications where independent RCCB function is required.
CHINT thermal overload relays (NR2, NR4 series, 0.1A–630A adjustable range) provide bimetallic motor overload protection for mounting directly onto NXC contactor bodies or panel DIN-rail for remote mounting configurations. Trip class TC10 and TC20 are available for standard and high-inertia motor applications respectively. The NR2 series covers 0.1–93A in direct-mount format for NXC-09 to NXC-95 contactors; the NR4 series covers 55–630A for heavy-duty NXC motor starter assemblies. Pre-wired motor starter kits (NXC contactor + NR2 overload relay + auxiliary contacts) are available as assembled and tested combinations for direct panel installation — reducing wiring time for standard direct-on-line motor starter assemblies.
CHINT smart energy meters (DTSU666, DDSU666 series) provide single-phase and three-phase energy measurement with Modbus RTU and RS-485 communication for integration with building management systems, energy monitoring platforms and solar inverter power management. The DTSU666 three-phase meter (100A direct, CT-connected up to 3×500A) covers industrial and commercial metering applications requiring remote data reading. Multi-function power meters (PD194Z series) measure voltage, current, power, power factor, frequency and energy — providing complete power quality data for industrial panel energy monitoring without a separate power quality analyser. All CHINT meters carry CE and MID certification for European legal metering applications where required.
DAS Company provides access to current CHINT pricing for authorized B2B buyers across Europe. CHINT products offer IEC-certified quality at significantly lower price points than equivalent European brand products — making CHINT the preferred choice for cost-sensitive projects, large quantity panel builds and emerging market electrical infrastructure. Product categories with available pricing include NXB MCBs (by pole, curve and breaking capacity), NM8 MCCBs (by frame, current rating and trip unit), NXC contactors (by ampere rating and coil voltage), NXBLE RCBOs (by pole and sensitivity) and energy meters. Contact our sales team for volume pricing and project quotations.
