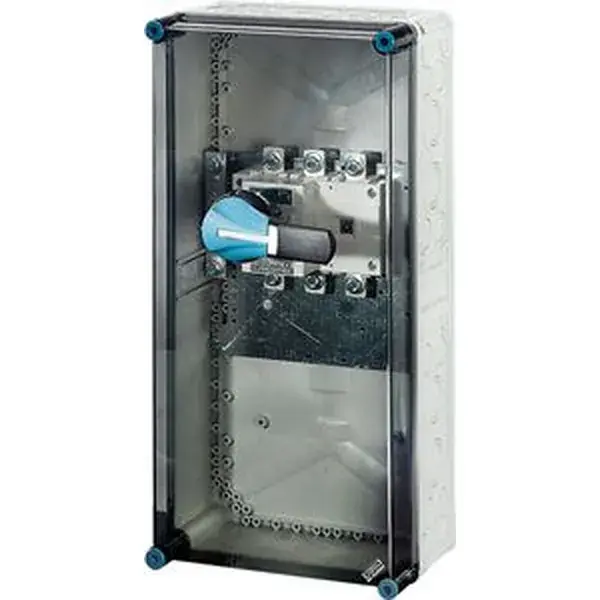

Mi Load-break Switch Box 250 A, 3-pole + Pe + N

Colour Control Element

Black

Degree Of Protection (ip), Front Side

Ip65

Device Construction

Complete Device In Housing

Interlockable

+

Max. Rated Operation Voltage Ue Ac

500 V

Motor Drive Integrated

-

Motor Drive Optional

-

Number Of Auxiliary Contacts As Change-over Contact

0

Number Of Auxiliary Contacts As Normally Closed Contact

0

Number Of Auxiliary Contacts As Normally Open Contact

0

Number Of Poles

3

Rated Operating Voltage

500 .. 500 V

Rated Operation Power At Ac-3, 400 V

132 Kw

Rated Operation Power At Ac-23, 400 V

132 Kw

Rated Permanent Current Iu

250 A

Rated Permanent Current At Ac-21, 400 V

250 A

Rated Short-time Withstand Current Lcw

9 Ka

Suitable For Distribution Board Installation

-

Suitable For Front Mounting 4-hole

-

Suitable For Front Mounting Centre

-

Suitable For Ground Mounting

-

Suitable For Intermediate Mounting

-

Switching Power At 400 V

132 Kw

Type Of Control Element

Long Turning Handle

Type Of Electrical Connection Of Main Circuit

Bolt Connection

Version As Emergency Stop Installation

-

Version As Main Switch

+

Version As Maintenance-/service Switch

-

Version As Reversing Switch

-

Version As Safety Switch

-

Voltage Release Optional

-
